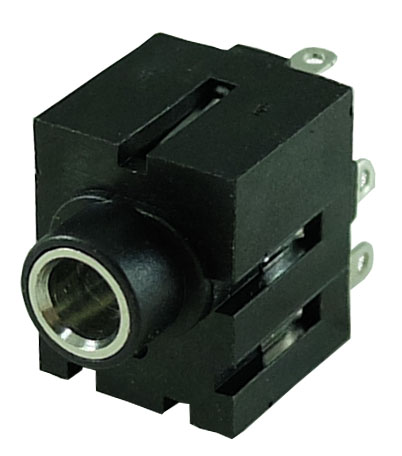

Product Name : Audio Jack

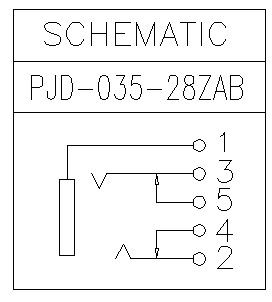

Product Model : PJD-035-28ZAB
Q'ty :



Product Description

Ø3.5mm / Phone jack / Audio jack / Miniature jack / DIP type

Product Character

Rating: DC 12V 1A

Contact resistance : 30 mΩ or less

Insulation resistance: 100MΩ MIN.

Insertion & Withdrawal force : 2.9429.4N0.33kgf

Withstand voltage : 500VAC

Life test : 5,000 cycles
